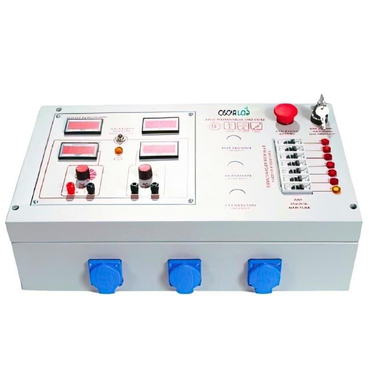

Oscar Energy Distribution and Main Control Unit (03-MOB591598)

Oscar Energy Distribution and Main Control Unit

This laboratory unit is designed as a teacher unit for science and physics laboratories. In addition to 220V mains electricity that the teacher may need, there is also a laboratory power supply with 0-15V AC and DC outputs. There is also the possibility of control and protection for the supply lines of the student units. There is also an emergency button that can shut down the entire system in case of emergency.

The body is electrostatically painted on 1mm galvanized sheet metal and is highly resistant to corrosion. The power supply has 0-15V 5A DC fine-tuned and 1.5-3-6-9-12V 5A AC stepped power output, 0-30V DC voltmeter and 0-30V AC voltmeter indication, and is protected against short circuits and overloads. The protection system is realized with an automatic resettable fuse, so the problem of frequent glass fuse replacement is eliminated. Voltage can be obtained from DC and AC outputs at the same time.

There are electrical control and protection fuses on the panel. There are also three 220V 16A IP44 grounded sockets with cover. The sockets are capped and sealed and are resistant to water splashes. This laboratory unit is designed to meet all your needs.
