Oscar Energy Distribution Student Unit (03-MOB591611)

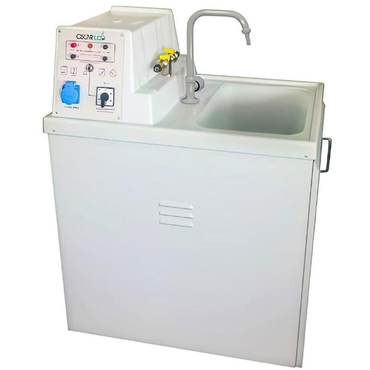

Oscar Energy Distribution Student Unit

There is a device that is ideal for student units in physics, chemistry and biology laboratories. This device includes a combined laboratory power supply with 220V mains electricity and low voltage outputs that students may need. In addition, its body is electrostatically painted on 1mm galvanized sheet metal and is highly resistant to corrosion.

Laboratory power supply, 1.5-3-6-9-12V 5A AC-DC stepped power output. It has short circuit and overload protection mechanisms. The protection system is realized with an automatic resettable fuse, thus eliminating the need for glass fuse replacement. In case of a short circuit, the fuse can be returned to its original position and continued use. In addition, voltage can be obtained from DC and AC outputs at the same time.

Other features of this device include 2 sockets with 220V 16A IP44 grounded cover. The sockets are capped and sealed and are water resistant. There is also a Polypropylene sink with a chemical resistant plastic siphon and a lab type single cold water tap. The water faucet is coated with chemical resistant epoxy polyester and has a nozzle compatible with 6-10mm hoses.

The device also has a gas tap. The gas tap is a lab type double outlet device and has a chemical resistant epoxy polyester coating. Thanks to the double-sided safety quick coupling system, even if the gas valve is opened, if the buzen burner hose is not attached, there will be no gas output. While the gas valve is open, the bunsen burner hose cannot be attached, and while the bunzen burner hose is attached, the hose cannot be removed without closing the faucet valve. Thanks to these features, uncontrolled gas outlets are prevented.
